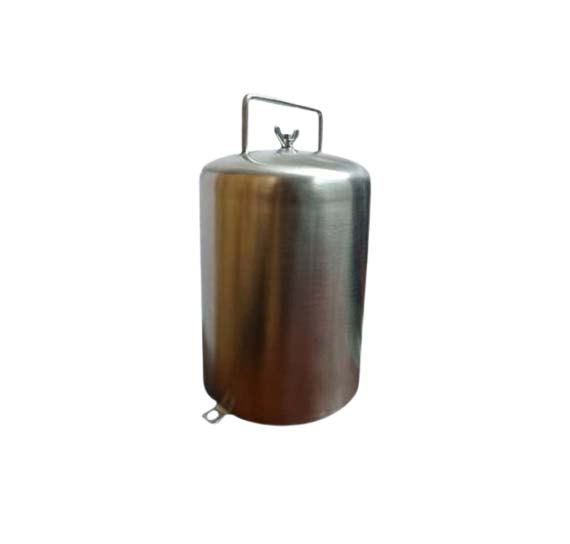

Air Vent
The Air Vent is engineered for hygienic applications in dairy processing, specifically for milk storage tanks. Fabricated from SS 304 or SS 316L, this vent ensures compliance with sanitary standards (such as 3-A and EHEDG, if applicable), providing reliable pressure equalization while preventing contamination.
Technical Specifications:
- Material: SS 304 / SS 316L (contact parts)
- Design: Hygienic, CIP/SIP compatible
- Connection Type: Tri-clamp / Welded / Threaded (DIN/SMS/ISO standards)
- Surface Finish: Internal Ra < 0.6 µm, external polished
- Pressure Range: 0 to ±0.5 bar (customizable)
- Vent Type: Open-type or with microbial filter (as per requirement)
- Temperature Resistance: Up to 120°C
- Compliance: Food-grade, conforms to FDA and dairy standards
Functional Description:
This air vent facilitates the controlled entry and exit of air during filling or emptying of milk tanks, effectively avoiding vacuum or overpressure conditions. Its sanitary design minimizes the risk of microbial ingress, supporting clean and safe dairy processing environments
